Xtra Strength SPH Chains

CNIP Xtra Strength SPH Chains

CNIP Xtra Strength SPH Chains have specially designed, close tolerance link plates and pitch holes Their special design can improve load carrying capacity by 25–32% The pins used on these chains are thru hardened for greater shock load resistance The dimensions of these chains are the same as ANSI standard roller chains.


CNIP Xtra Strength SPH Chains

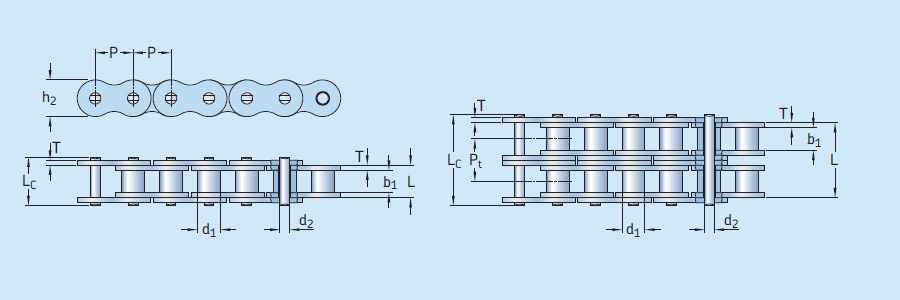

Chain number Dimensions Ultimate tensile strength Average tensile strength Weight per meter Designation
Pitch Roller diameter Width between inner plates Pin diameter Pin length Inner plate height Plate thickness Transverse pitch
P d1 max b1 min d2 max L max LC max h2 max T max Pt Q min Q0 q
mm kN kg/m
80SPH-1 25,400 15,88 15,75 7,94 32,7 36,5 24,10 3,20 - 77,5 85,3 2,86 PHC80SPH-1X…
100SPH-1 31,750 19,05 18,95 9,54 40,4 44,7 30,10 4,00 115,5 127,0 4,21 PHC100SPH-1X…
120SPH-1 38,100 22,23 25,22 11,11 50,3 54,3 36,20 4,80 - 165,0 186,0 6,36 PHC120SPH-1X…
140SPH-1 44,450 25,40 25,22 12,71 54,4 59,0 42,20 5,60 - 222,7 245,0 8,04 PHC140SPH-1X…
160SPH-1 50,800 28,58 31,55 14,29 64,8 69,6 48,20 6,40 - 285,5 314,0 10,80 PHC160SPH-1X…
200SPH-1 63,500 39,68 37,85 19,85 80,3 87,2 60,30 8,00 - 445,5 490,0 18,00 PHC200SPH-1X…
240SPH-1 76,200 47,63 47,35 23,81 95,5 103,0 62,40 9,50 - 640,0 704,0 37,84 PHC240SPH-1X…
80SPH-2 25,400 15,88 15,75 7,94 62,7 65,8 24,10 3,20 29,29 155,0 170,6 5,68 PHC80SPH-2X…
100SPH-2 31,750 19,05 18,95 9,54 76,4 80,5 30,10 4,00 35,76 231,0 255,0 8,34 PHC100SPH-2X…
120SPH-2 38,100 22,23 25,22 11,11 95,8 99,7 36,20 4,80 45,44 339,0 373,0 12,63 PHC120SPH-2X…
140SPH-2 44,450 25,40 25,22 12,71 103,3 107,9 42,20 5,60 48,87 445,5 490,0 15,92 PHC140SPH-2X…
160SPH-2 50,800 28,58 31,55 14,29 123,3 128,1 48,20 6,40 58,55 571,0 628,0 21,43 PHC160SPH-2X…
200SPH-2 63,500 39,68 37,85 19,85 151,9 158,8 60,30 8,00 71,55 892,0 981,0 35,00 PHC200SPH-2X…
240SPH-2 76,200 47,63 47,35 23,81 183,4 190,8 62,40 9,50 87,83 1280,0 1408,0 52,89 PHC240SPH-2X…
80SPH-3 25,400 15,88 15,75 7,94 91,7 95,1 24,10 3,20 29,29 232,5 255,9 8,18 PHC80SPH-3X…
100SPH-3 31,750 19,05 18,95 9,54 112,2 116,3 30,10 4,00 35,76 347,3 382,0 12,47 PHC100SPH-3X…
120SPH-3 38,100 22,23 25,22 11,11 141,4 145,2 36,20 4,80 45,44 508,0 559,0 18,90 PHC120SPH-3X…
140SPH-3 44,450 25,40 25,22 12,71 152,2 156,8 42,20 5,60 48,87 668,0 735,0 23,84 PHC140SPH-3X…
160SPH-3 50,800 28,58 31,55 14,29 181,8 186,6 48,20 6,40 58,55 855,5 941,0 32,10 PHC160SPH-3X…
200SPH-3 63,500 39,68 37,85 19,85 223,5 230,4 60,30 8,00 71,55 1336,4 1470,0 52,50 PHC200SPH-3X…
240SPH-3 76,200 47,63 47,35 23,81 271,3 288,2 62,40 9,50 87,83 1920,0 2112,0 60,84 PHC240SPH-3X…
