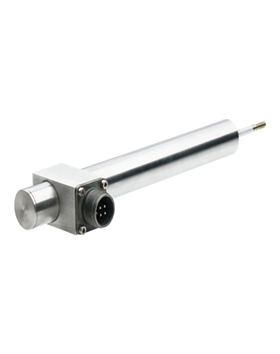

LVDT sensor DTC
- Nominal stroke: 20 mm up to 100 mm
- Installation length: 195 mm up to 435 mm
- Case diameter: 25 mm
- Plunger diameter: 3mm
- Operating temperature: -50 °C to +120 °C
- Protection class: IP 54

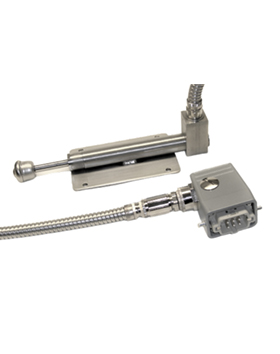

LVDT sensor DTK 50 AE
- Nominal stroke: 50 mm to 100 mm
- Case diameter: 25 mm
- Operating temperature: Probe sensor: 0 °C ... +120 °C, electronics: 0 °C ... +60 °C
- Probe: IP 64, electronics: IP 62 (plugged)

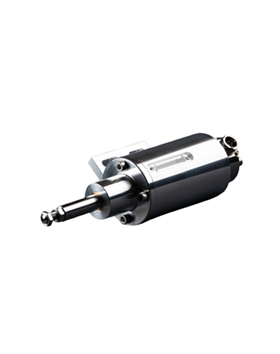

LVDT sensor VMI
- Nominal stroke: 50 mm to 100 mm
- Mechanical stroke: 52 mm to 105 mm
- Case diameter: 3 mm
- Operating temperature: 0 ... 70 °C
- Protection class (DIN 40050): IP 64

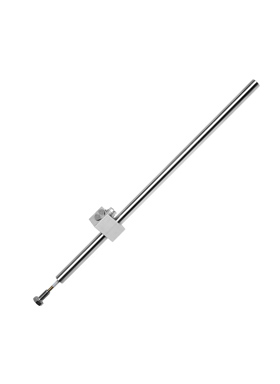

LVDT sensor WLU
- Nominal stroke: 100 mm up to 300 mm
- Mechanical stroke: 55 mm up to 185 mm
- Case diameter: 16 mm
- Operating temperature: -50 ... 120 °C, briefly up to 150 °C
- Protection class (DIN 40050): IP 65
