Codice ordinazione ■ Order code ■ Code article ■ Bestell-Nummer ■ Código pedido

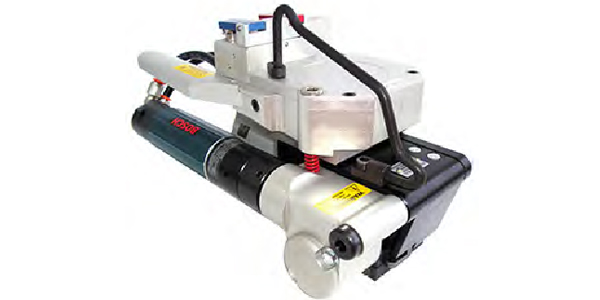

- POLI HT 16 mm 110.160.630
- POLI HT 19 mm 110.190.630
Codice ordinazione ■ Order code ■ Code article ■ Bestell-Nummer ■ Código pedido
| Technical Data | |
|---|---|
| Package type | Flat - round (min. diam.700mm) |
| Strap quality | PET |
| Strap width | 16 mm - 19 mm |
| Strap thickness | 0.8 mm - 1.27 mm |
| Max. tension | 4.000N (16 mm) - 5.000N (19 mm) |
| Max. tension speed | Around 6 m/min |
| Joint type | Friction weld seal |
| Weight | around 5.3 Kg |
| Air pressure | 6 - 7 bar max |
| Air consumption | 12 l/s |
