OsiSense XC Special Format

Application-specific Limit Switches

Unique applications demand unique limit switch solutions; and Telemecanique Sensors has been addressing unique machine applications all over the globe for the past 90 years.

This range of application-specific IEC limit switches with special formats (formerly known as OsiSense), are dedicated to specific applications such as hoisting, Mining, Minerals & Metals or belt conveying. The whole range is designed for easy product selection, installation and maintenance.

    Very severe material handling applications

  • XC1AC range for linear movement (plunger).
  • XCR range for rotary movement operators.

    • Very severe applications

  • XC2J range with variable composition for fixed or plug-in body.
  • Adaptable sub-assemblies for standard to extreme temperature (-40°C or + 120°C)/

    • Conveyor belt applications

  • Very well designed products for belt shift monitoring.
  • XCRT range for standard or corrosive atmospheres.

    • Hoisting applications - Cross Limit Switch

  • Dedicated products for overhead cranes and block hoists for end of travel control.
  • Very rugged with heavy duty metal cases.
  • Single speed travel limit control: XCRE and XCRF are complete units with 1 cable entry and positive opening contacts, choice on contact operations.
  • Single or double speed travel limit control XCKMR is a complete unit with 3 cable entries and positive opening contacts, one per position.

    • Power overtravel Limit Switch

    Limit switches with contactor inside to break main power circuit on the machine:

  • XF9-D: in an alu allow housing, fitted with the head of an LC1-D contactor: With manual latching and resetting restricted by a padlockable device.
  • XF9-F: in a sheet steel enclosure, fitted with the head of an LC1-F contactor: With manual latching and resetting or with counterweights and automatic resetting.

    • Rotary Limit Switch

    Wide offer of robust rotary limit switches which connect directly to rotating shafts for medium to heavy duty applications:

  • XRBA range standard duty AC/DC 10A.
  • XR2A and XR2B heavy duty AC/DC 20A.

    • Microswitches

  • XE range of subminiature format and microswitch for applications requiring high precision and low force applications.

    • Unique applications? Unique machine configurations? There is one place to find all the necessary limit switches! Simply easy!


switch-1
st-1

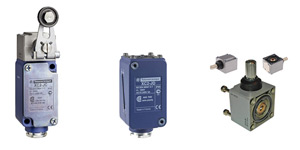

XC2 VERY SEVERE DUTY APPLICATIONS


st-2

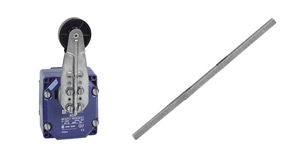

XC1 VERY SEVERE DUTY FOR MATERIAL HANDLING APPLICATIONS


st-3

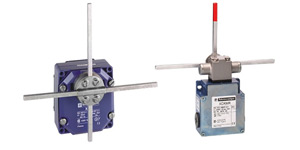

XCR / XCK*R CROSS LIMIT SWITCHES FOR HOISTING APPLICATIONS


st-4

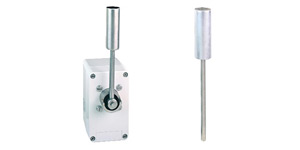

XCRT FOR CONVEYOR BELT APPLICATIONS


st-5

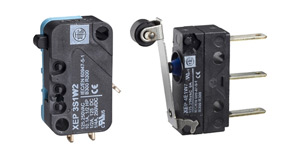

XEP* / XC0 MICROSWITCHES
