LVDT Sensor DAE

  • Nominal stroke: 25 mm bis 1000 mm
  • Installation length: 145 mm bis 1400 mm
  • Case diameter: 5 mm
  • Output signal: 0V bis 10v
  • Oprating temperature:0oC bis +60oC
  • Protection class: IP 65/IP 67
beater2

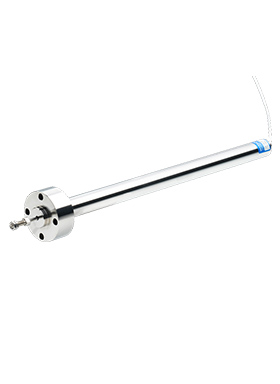

LVDT sensor DF

  • Nominal stroke: 6 mm upto 130 mm
  • Installation length: 70 mm upto 375 mm
  • Case diameter: 20 mm
  • Connections: Braided wire,axial cable
  • Carrier frequency: 5 kHz(option:10 kHz)
  • Oprating temperature:-20 ...80oC (option up to 120oC
  • Protection (DIN 40050): IP 65
beater3

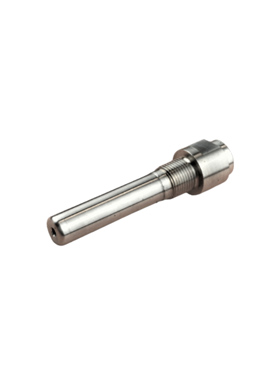

LVDT sensor DGB

  • Nominal stroke: 25 mm bis 400 mm
  • Pressure resistance: upto 300 bar
  • Housing diameter: 15 mm
  • Connections thread: M 18 x 1,5
  • Carrier frequency: 5 kHz,optional:10 kHz
  • Oprating temperature:-40 ...80oC (option up to 120oC
  • Protection (DIN 40050): IP 65
beater4

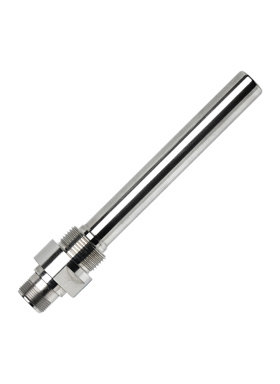

LVDT sensor DGO

  • Nominal stroke: 25 mm upto 1000 mm
  • Pressure resistance: 300 bar standard
  • Case diameter: 20 mm
  • Carrier frequency: 5 kHz,optional:10 kHz
  • Oprating temperature:-40 ...80oC (option up to 120oC
  • Safety class: IP 65
beater5

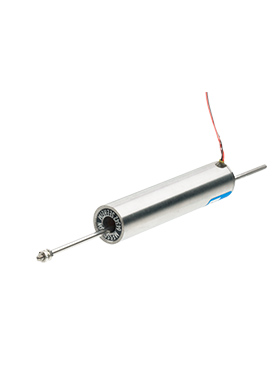

LVDT sensor DK

  • Nominal stroke: 2 mm upto 250 mm
  • Installation length: 30 mm upto 510 mm
  • Case diameter: 20 mm
  • Connections: Braided wire,axial cable,radial cable
  • Carrier frequency: 5 kHz,optional:10 kHz
  • Oprating temperature:-50 ...60oC
  • Safety class: IP 64
beater6

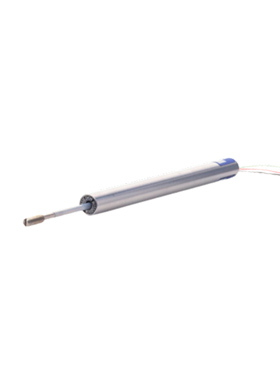

LVDT sensor DLH

  • Nominal stroke: 50 mm upto 500 mm
  • Installation length: 100 mm upto 600 mm
  • Case diameter: 12 mm
  • Carrier frequency: 5 kHz(other frequencies on request)
  • Linearity:0.5%,0.25%,0.1%
beater7

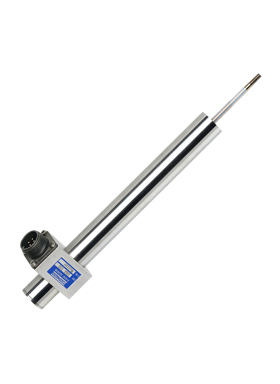

LVDT sensor DAA

  • Nominal stroke: 25 mm to 1000 mm
  • Installation length: 145 mm to 1400 mm
  • Case diameter: 25 mm
  • Output signal: 4 mA to 20 mA
  • Operating temperature: 0 °C to +60 °C
  • IP 65 in the connector area, otherwise IP 67
beater8

LVDT sensor DU

  • Nominal stroke: 15 mm upto 1000 mm
  • Installation length: 70 mm upto 1420 mm
  • Case diameter: 14 mm
  • Connections: Braided wire,axial cable,radial cable
  • Carrier frequency: 5 kHz,optional:10 kHz
  • Oprating temperature: -40oC to +80oC (option:upto 120oC)
  • Protection class(DIN 40050): IP 64
beater9

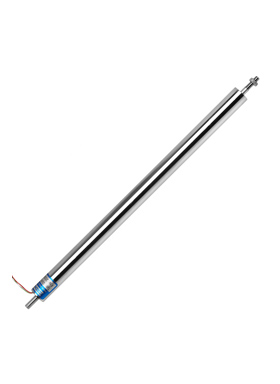

LVDT sensor DUH

  • Nominal stroke: 50 mm upto 500 mm
  • Installation length: 100 mm upto 600 mm
  • Case diameter: 16 mm, core diameter 3 mm or 5mm
  • Connections: Braided wire,axial cable(axial,radial),connector(axial,radial)
  • Carrier frequency: 5 kHz/li>
  • Protection class(DIN 40050): IP 64
  • Oprating temperature: -40oC to +80oC (option:upto 120oC)
  • Optionally integrated eletronics and spring loaded version
beater10

LVDT sensor WA

  • Nominal stroke: 60 mm upto 1000 mm
  • Mechanical stroke:70 mm upto 1100 mm
  • Case diameter: 16/13 mm
  • Output signal: 0V bis 10v
  • Oprating temperature:0...60oC
  • Protection class(DIN 40050): IP 65
beater11

Sensor DM

  • Nominal stroke: 16 mm
  • Installation length 35 mm
  • Case diameter: 20 mm
  • Connection: Leads, cable
  • Carrier freq.: 5 kHz
  • Operating temperature: -30 ... 100 °C
  • Protection: IP 68
beater12

LVDT sensor DTU

  • Nominal stroke: 8 mm
  • Installation length: 42 mm
  • Case diameter: 5 mm
  • Connections: Radial cable
  • Carrier frequency: 5 kHz
  • Operating temperature: -30 ... 80 °C
  • Protection class (DIN 40050): IP 65
beater12

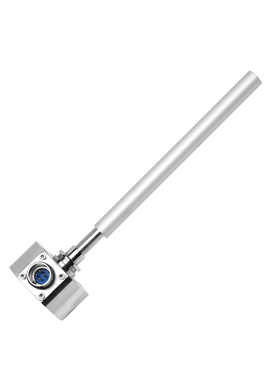

LVDT sensor WI

  • Nominal stroke: 60 mm up to 1000 mm
  • Mechanical stroke: 70 mm up to 1100 mm
  • Case diameter: 16/13 mm
  • Operating temperature: 0 ... 60 °C
  • Protection class (DIN 40050): IP 65
  • Pressure resistant up to 320 bar
beater12

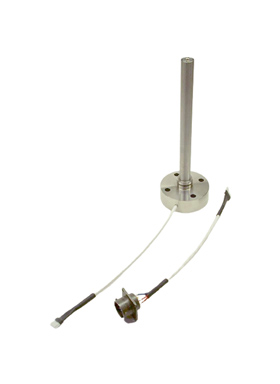

LVDT sensor DUR

  • Nominal stroke: 25 mm up to 1000 mm
  • Installation length: 80 mm up to 1420 mm
  • Case diameter: 14 mm
  • Operating temperature: -40 °C to +80 °C (option: up to 120 °C)
  • Protection class (DIN 40050): IP 64
beater11

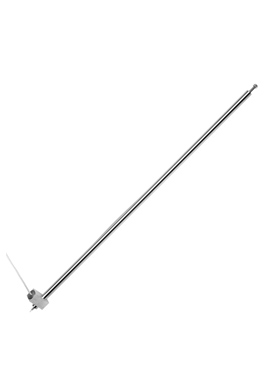

LVDT sensor WLH

  • Nominal stroke: 10 mm up to 500 mm
  • Mechanical stroke: 2 mm up to 258 mm
  • Case diameter: 12 mm
  • Operating temperature: -50 ... 80 °C, option: up to 120 °C
  • Protection class (DIN 40050): IP 64
beater12

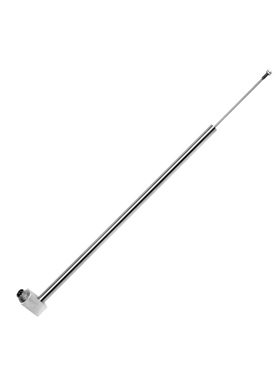

LVDT sensor WLG

  • Nominal stroke: 10 mm up to 500 mm
  • Mechanical stroke: 10 mm up to 258 mm
  • Case diameter: 12 mm
  • Operating temperature: -50 ... 80 °C, optional up to 120 °C
  • Protection class (DIN 40050): IP 64
beater11

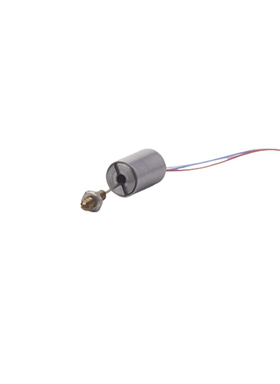

LVDT sensor WM

  • Nominal stroke: 1 mm up to 2 mm
  • Mechanical stroke: 3 mm
  • Case diameter: 10 mm
  • Operating temperature: -50 ... 80 °C
  • Protection class (DIN 40050): IP 64
beater12

LVDT sensor WT / WTA

  • Nominal stroke: 2 mm up to 100 mm
  • Mechanical stroke: 1.6 mm up to 52 mm
  • Case diameter: 12 mm
  • Operating temperature: -50 ... 80 °C, option up to 120 °C
  • Protection class (DIN 40050): IP 54
