Stainless Steel Machine Screw Manufacturers

Supplies A Full Range Of SS Machine Screws, Allen Head Stainless Steel Machine Screws, 316 SS Machine Screws At Factory Price In India. Carries A Complete Line Of Black Oxide Stainless Steel Machine Screws, M4 Stainless Steel Machine Screws, Stainless Steel Round Head / Oval Head/ Torx Head /Truss Head Machine Screws In Mumbai, India

Those Screws Made From 304 Grade Stainless Steel Are Known As A4 Stainless Steel Machine Screws, Which Is One Of The Most Widely Utilized Stainless Steel Grades. Following Grade 304, In Terms Of Consumption, Grade 316 SS Machine Screws Offer Good Hardness, Good Mechanical Strength As Well As Good Corrosion Resistance, Hence The M4 Stainless Steel Machine Screws Are Well Suited To Those Applications That Demand These Qualities.

Allen-Head-Stainless-Steel-Machine-Screws

Stainless Steel Button Head Machine Screws are either plated or coated with chromium or black oxide which not only add to its physical value but also enhance its mechanical properties. For example, Black Oxide Stainless Steel Machine Screws have mild corrosion resistance, reduced light reflection as well as a dark appearance on addition of black oxide to these screws. On the other hand, Chrome Plated Stainless Steel Machine Screws have an increased hardness and increased corrosion resistance. Besides providing these benefits, chrome plating provides a decorative surface as well as ease in cleaning the surface of the screw.

SS Machine Screws are a type of fasteners, that could be often used with nuts or it could also be driven into tapped holes without the use of nuts. Allen Head Stainless Steel Machine Screws are used in huge industrial, engines electronic equipment’s where they are used to hold two parts together.

Depending on the Machinery's Handbook distinction, the Stainless Steel Csk Machine Screws might be considered a screw or a bolt based.

Stainless steel machine screw manufacturers produce smaller sized screws, which ambiguously are known as machine screws. In addition to being known as machine screws, they could also be referred to as stove bolts.

Stainless Steel Machine Screw Specification

Grade	18-8 Stainless Steel, 4.8, 8.8, A2, A4, A2-70; A4-70; A4-80 Socket Head Cap Screws
Stainless Steel Screw standard	ISO 14583
Stainless Steel counter sunk screws standard	ISO 10642
British standards	BS 57
Stainless Steel Machine Screws Size	Cold Froging : M2-M24 Hot forging M24-M100, 1-1/2” Dia, up to 1100mm lg Machining and CNC for Customized connecting element: up to M100 / 4” Dia, up to 1500mm lg Stainless Steel Machine Screws M2, M3, (M3.5), M4, M5, M6, M8, M10, M12, (M14), M16, (M18), M20, (M22), M24, (M27), M30, M33, M36, M42, (M45), M48 to M160 and Custom Sizes
Length	3 mm to 200 mm
Stainless Steel Threads:	METRIC, BSW, BSF, UNC, UNF or as required
Standard:	ISO 14585C ~DIN 7981C DIN 7973C ~ISO 1483 DIN 7983C ~ISO 7051 ISO 4762, ISO 2009, ISO 7050, ISO 14587, ISO 14587, ISO 14584, ISO 14582 ANSI B18.3.1M ASME B18.6.3 GB/T5782, GB/T5783, GB5783 DIN, ISO, JIS, GB, IS, BS, ASTM and all International Standards ANSI – American National Standards Institute
DIN Standard	B.S. DIN 933, DIN 931, DIN 934, DIN 912, DIN 603, DIN 6923, DIN 970, DIN 7981, DIN 7982, DIN916, DIN 913, DIN 7985
UTS – Unified Thread Standard	UNC, UNF, UNEF, UNS, NPT, NPTF
Dimensions	ASME B18.6.3 **Exception: screws 6 inches and shorter are fully threaded.
Tolerance	+/-0.01mm to +/-0.05mm
Head drive:	Phillips, Slotted, Phillips/Slot, Six-Lobe, etc
Type	Pan/ Round/ Oval/ countersunk/ Truss head
Head	Pan head, flat head, oval head, hex head, phillips head
Finishing:	Zinc (yellow, white, blue, black), black oxide Geometry, Dacroment, anodizing, nickel plated, plated zinc-nickel, Stainless steel: Passivated Self-Colour, Hot Dip Galvanised (HDG), Bright Zinc Plated (BZP), Sherardized, Stainless Steel, Mechanically Applied coating and some special one like DACROMET
Finish	Per ASTM A380/A380M
Production process	Wire DraHex, Cold Heading, Insert tapping, Heat Treatment, Surface Plating, Inspection, Packing
Origin and service-region:	European Origin of Stainless Steel Machine Screws are Western European. However projects with eastern origin are possible on request.
Surface Coating:	Ptfe Coated Machine Screws Hot Dipped Galvanizing Machine Screws Phosphate Machine Screws Teflon Machine Screws Xylon Machine Screws Zinc Phosphate Machine Screws Manganese Phosphate Zinc Electro Plating (Hexavalent or Trivalent Chrome) ZAC (Zinc Alluminium Flake Coating) Cadmium Machine Screws All surface finishes can be supplied, including Zinc, Galvanised, Sherardized, Electroless Nickel, Dacromet, Geomet & PTFE.
Surface treatment	Polish Passivation Anodizing Sand blasting Heat-disposing Hot-dip galvanizing Rust preventive oil Black oxide coating Electroplating (color, blue, white, black zinc, Ni, Cr, tin, copper, silver)
Top Manufacturers	SPAX® Screws, GKW, Unbrako, Kundan, APL, Sundaram Precision, Infasco, EBY Fastener Etc.
Stainless Steel Machine Screws Packing:	IN BULK: canton, pallet, Small Boxs / carton / pallet, or customer request
Why choose us?	Best Price in India and compare to China Professional technical team High precision threads Strong production line Manifold Pipe Solution Inc. will be your reliable partner
MOQ	5 pieces
Test Certificate:	Manufacturer Test Certificate as per EN 10204 / 3.1, Tensile testing to ISO 898-1 Nut proof load testing to ISO 898-2 Suitability for preloading to EN 14399-2 Suitability test for calibrated preload to EN 14399-10 Charpy Impact testing in accordance with ISO 148-1 Hardness testing to ISO 6508-1 Tri-Roll Thread Comparators Calibrated gauges and tools
Free Samples	Yes
Delivery time	Regular product is about 7-15 days, custom product will according to special requirement
Payment Terms	T/T, Paypal, Western Union, L/C or Trade Assurance 30% deposit & balance before shipping
Other available material	Stainless Steel Machine Screws: SUS201, SUS304, SUS316, SUS410 Brass Machine Screws: C36000 ( C26800), C37700 ( HPb59), C38500( HPb58),C27200CuZn37), C28000(CuZn40) Bronze Machine Screws: C51000, C52100, C54400 etc Aluminum Machine Screws: Al6061, Al6063 etc. Aluminum Alloy Machine Screws: Al6061, Al6063 etc Titanium and Titanium Alloy Machine Screws: TAD, TA1-TA8, TB2, TC1-TC10 Alloy steel Machine Screws: SCM435, C10B21, C10B33
Stainless Steel Machine Screws dealers & distributors are located in	Kolkata, Tehran, Nagpur, , Manama, Ludhiana, Khobar, London, Ankara, Dhabi, Bangalore, Karachi, Thiruvananthapuram, Perth, Rajkot, Bogota, Riyadh, Kuwait Courbevoie, Coimbatore, Kanpur, Caracas, Gurgaon, Ahmedabad, Gimhae-si, Melbourne, Gujarat, Muscat, Tau, Indore, Mumbai, Sydney, Abu Dammam, New Pimpri-Chinchwad, Delhi, Mexico Santiago, Lagos, Calgary, Vadodara, Ahvaz, Noida, Chennai, Bengaluru, Baroda, Janeiro, Surat, Ranchi, Ernakulam, Istanbul, Howrah, Port-of-Spain, Jamshedpur, Ludhiana, Hyderabad, India, Montreal
Uses & application	Railway, Wind tower, Nuclear power, Automotive industry, Construction, Electronic industry

India’s Largest Manufacturer Of Stainless Steel Button Head Machine Screws, Stainless Steel Csk Machine Screws In Mumbai, India

Stainless Steel Machine Screw For Sale

M2 Stainless Steel Machine Screws
M3 Stainless Steel Machine Screws
M5 Stainless Steel Machine Screws
M6 Stainless Steel Machine Screws
M8 Stainless Steel Machine Screws
4 Inch Stainless Steel Machine Screws
Stainless Steel Pan Head Machine Screws
Stainless Steel Self Tapping Machine Screws
Polished Stainless Steel Machine Screws

Stainless Steel Flat Head Machine Screws
Stainless Steel Flat Head Phillips Machine Screws
Truss Head Stainless Steel Machine Screws
Stainless Steel Oval Head Machine Screws
Stainless Steel Torx Head Machine Screws
Stainless Steel Round Head Machine Screws
Imperial Stainless Steel Machine Screws
Stainless Steel Countersunk Machine Screws
3mm- 6mm Stainless Steel Machine Screws

Dimensions of Stainless Steel Machine Screw

Screw Size	Head Dimensions		Slot Dimemsions				Recess Dimensions						Driver Size
	Head Diam.	Head Height	Width		Depth		Width	Depth	Max. Rad	Min. Wing Width	Recess Penetration
	Head Diam.	Head Height	Max.	Min.	Max.	Min.	Width	Depth	Max. Rad	Min. Wing Width	Max.	Min.
0	.116 .104	.044 .036					.067 .054	.039 .021	.010	.013	.032	.014	0
1	.142 .130	.053 .044					.074 .061	.045 .025	.010	.014	.040	.022	0
2	.167 .155	.062 .053	.031	.023	.031	.022	.104 .091	.059 .041	.020	.017	.052	.034	1
3	.193 .180	.071 .062	.035	.027	.036	.026	.112 .099	.065 .050	.020	.019	.061	.043	1
4	.219 .205	.080 .070	.039	.031	.040	.030	.122 .109	.078 .060	.020	.019	.071	.053	1
5	.245 .231	.089 .079	.043	.035	.045	.034	.158 .145	.083 .057	.025	.028	.072	.046	2
6	.270 .256	.097 .087	.048	.039	.050	.037	.166 .153	.091 .066	.025	.028	.080	.055	2
7	.296 .281	.106 .096	.048	.039	.054	.041	.176 .163	.100 .075	.025	.029	.089	.064	2
8	.322 .306	.115 .105	.054	.045	.058	.045	.182 .169	.108 .082	.025	.030	.097	.071	2
10	.373 .357	.133 .122	.060	.050	.068	.053	.199 .186	.124 .100	.025	.031	.113	.089	2
12	.425 .407	.151 .139	.067	.056	.077	.061	.259 .246	.141 .115	.030	.034	.124	.098	3
1/4	.492 .473	.175 .162	.075	.064	.087	.070	.281 .268	.161 .135	.030	.036	.144	.118	3
5/16	.615 .594	.218 .203	.084	.072	.106	.085	.350 .337	.193 .169	.035	.059	.173	.149	4
3/8	.740 .716	.261 .244					.389 .376	.233 .210	.035	.065	.213	.190	4
7/16	.863 .838	.304 .286					.413 .400	.259 .234	.035	.068	.239	.214	4
1/2	.987 .958	.348 .327					.435 .422	.280 .255	.035	.071	.260	.235	4

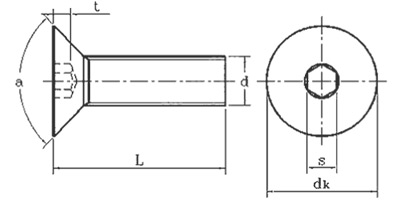

Size Chart of Stainless Steel Machine Screw

d		M3	M4	M5	M6	M8	M10	M12	M14	M16	M18	M20	M22	M24
P		0.5	0.7	0.8	1	1.25	1.5	1.75	2	2	2.5	2.5	2.5	3
dk	Max	6	8	10	12	16	20	24	27	30	33	36	36	39
dk	Min	5.7	7.64	9.64	11.57	15.57	19.48	23.48	26.48	29.48	32.38	35.38	35.38	38.38
S		2	2.5	3	4	5	6	8	10	10	12	12	14	14
	Max	2.1	2.6	3.1	4.12	5.14	6.14	6.175	10.175	10.175	12.212	12.212	14.212	14.212
	Min	2.02	2.52	3.02	4.02	5.02	6.02	8.025	10.025	10.025	12.032	12.032	14.032	14.032
t	Max	1.2	1.8	2.3	2.5	3.5	4.4	4.6	4.8	5.3	5.5	5.9	8.8	10.3
t	Min	0.95	1.55	2.05	2.25	3.2	4.1	4.3	4.5	5	5.2	5.6	8.44	9.87
a	Max	92°											62°
a	Min	90°											60°
d		M3	M4	M5	M6	M8	M10	M12	M14	M16	M18	M20	M22	M24
L		1000 ≈kg
8		0.47	0.92	1.5	2.35
10		0.56	1.07	1.85	2.7	5.47
12		0.65	1.23	2.1	3.05	6.1	10.1
16		0.83	1.53	2.59	3.76	7.35	12.1
20		1	1.84	3.09	4.46	8.6	14.1	21.2
25		1.35	2.23	3.71	5.34	10.2	16.6	24.8
30		1.63	2.9	4.33	3.71	5.34	10.2	16.6	24.8
30		1.63	2.9	4.33	6.22	11.7	19.1	28.5		51.8
35			3.4	5.43	7.1	13.3	21.6	32.1		58.4		91.4
40			3.9	6.2	8.83	14.8	24.1	35.7		65.1		102
50				7.74	11	19.9	30.1	43		78.4		123		179
60						24.8	35.7	54		91.7		143		209
70							41.2	62.9		111		164		239
80										143		200		269
90												226		299
100												253		340

View Allen Head Stainless Steel Machine Screws Dimensions & Weight, Stainless Steel Machine Screws Specifications.
