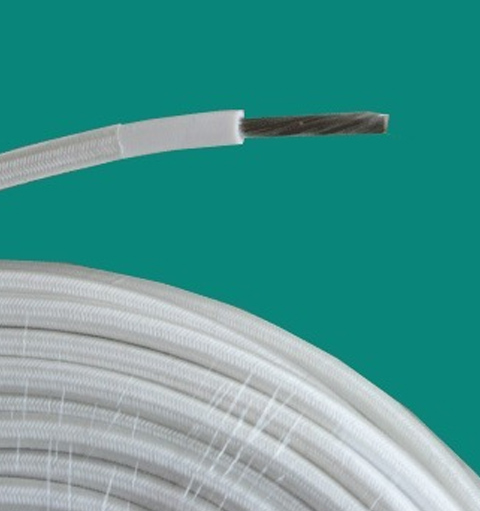

Fiber glass wire

Cables are an integral part of power supply. The Fiberglass Cable is made up of fiber-enforced plastic. In these cables, glass fiber is the reinforced plastic. This can be a reason why these cables are also referred to as Glass Fiber Wire. These cables are prepared by flattening sheets, which are then arranged or woven into a fabric. They can be made from different types of glass. The glass used is strong and lightweight. The Fiberglass Wire Cable is thereby widely seen in bathtubs, aircraft, boats, roofing, etc. We are the leading Fiberglass Cable manufacturer in India. Our ultimate goal is to manufacture top-quality products at feasible rates

The Fibreglass Cables can be classified into 5 classes. Each of these classes has its unique chemical and physical properties. These cables are available in the form of tapes, cloth, and ropes. A Fiberglass Wire possesses excellent strength, which is greater than steel. They have good dimensional stability and can suffice in different temperatures. The Fg cable we produce is highly durable and strong. They don’t corrode or get affected by insects and rodents. The Fiberglass Heater Cable is designed to withstand extreme temperatures. They don’t deform easily under any pressures or temperatures. To protect against electric shocks, the Fiberglass Insulated Cable is insulated with the best material. These invariably prevent shocks and short circuits in systems. Our products can be customized as per your needs in different shapes and sizes this also includes different Fiberglass Cables.

The Fibreglass braided furnace cable is designed with high-intensity materials. These cables can take 1450 watts of electricity at a time. Silicon cable with fibreglass braided are the best alternative for PVC and offer better resistance in high temperatures. Their conductor is made of copper. Fibreglass braided hv cables make use of copper as the current carrying capacity of these cables is higher. Another braided cable used in these applications is the Rubber cable with fibreglass braiding which is highly versatile. All these wires are designed to carry high volumes of electricity so; the fibreglass insulated cables are designed keeping in mind all these requirements.

Manufacturer & Supplier Of Heat Resistance Fiberglass Braided Silicone Insulated Wire In India

Specification List Of Fiberglass Cable

Insulation	fiberglass
Wire range	0GA, 2GA, 4GA, 6GA, 8GA, 10GA, 12GA, 14GA, 15GA, 16GA, 18GA, 20GA
Conductor Type	tin plated copper / Stranded 99.99% OFC (oxygen free copper) / copper coated
Quantity(Meters)	1 - 10
Rated Voltage	500V
Export To	Kuwait, Bahrain, Belgium, Indonesia, Germany, Brazil, MYANMAR, Nigeria, United States, Tanzania, Nepal, Bangladesh, Sri lanka, United Arab Emirates, Russia, Egypt, MOROCCO, UNITED ARAB EMIRATES (UAE), Oman, Saudi arabia, Srilanka, Bhutan, MOZAMBIQUE, Sudan, United kingdom, Malaysia, Poland, South Africa, Italy, Argentina, Kenya, Kuwait, Philippines, Netherlands, Malawi, Qatar, Colombia, Cuba, Australia, Saudi arabia, Austria, Oman, Nepal, Iraq, Qatar, Dubai, Singapore, Bhutan, Chile, Israel, South Africa, Zambia
Colour	Customized
Application	Overhead, Heating, Underground
Diameter	0.2~1.5mm
Packing	Pallet packing , carton packing, wooden / plastic reels

Product Range Of Fiberglass Wire

Fiber Glass Wires (F Class)
Tin Copper Wire
Fiber Glass Sleeves (F & I-I Class)
Bare Copper Wire (Any Size)
L T Wires (Red, Green, Yellow)

Fiberglass Insulated Cable Parameter

AWG	Specifications	Conductors		Insulations		Fiberglass thinkness	Wire Dia	Maximum resistance
AWG	Specifications	Structure	Dia	Nominal	Dia	Fiberglass thinkness	Tolerance	200C
NO.	mm2	mm	mm	mm	mm	mm	mm	Ω/KM
26	0.128	7/0.16	0.48	0.38	1.25	0.20	1.65	148
22	0.324	7/0.25	0.75	0.38	1.55	0.20	1.95	55
24	0.205	7/0.20	0.60	0.38	1.40	0.20	1.80	93
18	0.823	7/0.39	1.20	0.38	2.00	0.20	2.40	21.8
16	1.31	7/0.49	1.50	0.38	2.30	0.20	2.70	13.7
20	0.519	7/0.31	0.93	0.38	1.70	0.20	2.10	34.6

Construction Of Fg Cable

Conductor: Tinned copper or bare copper
Insulator: Silicone rubber
Sheath: Fiberglass braid, silicone resin coating

Glass Fiber Wire Working Volt

Working Volt

600/1100 voltage

Fiberglass Heater Cable Working Temperature

For Short Period	185 Deg.C
Continuous	155 Deg.C

Fiberglass Wire Current Rating

Cross Section	Standard Wire Bunch	Current Rating
0.5 sq.mm	16x0.2 mm	3 Amps
3 Amps	24x0.2 mm	5 Amps
1.0 sq.mm	32x0.2 mm	Amps
1.5 sq.mm	30x0.25 mm	10 Amps
2.5 sq.mm	50x0.25 mm	15 Amps
4.0 sq.mm	56x0.3 mm	20 Amps
6.0 sq.mm	84x0.3 mm	27 Amps
10.0 sq.mm	80x0.4 mm	34 Amps
16.0 sq.mm	128x0.4 mm	45 Amps
25.0 sq.mm	200x0.4 mm	59 Amps
35.0 sq.mm	280x0.4 mm	69 Amps
50.0 sq.mm	369x0.5 mm	91 Amps
70.0 sq.mm	360x0.5 mm	131 Amps

Fiberglass Wrapped High Temperature Cable Feature And Specification

Name: 2.5mm 350C fiberglass wrapped insulated pure nickel high temperature cable
Size: 0.5~6mm2
Ratings Voltage: 500V
Rated temperature: -60℃~+350℃

Structure And Dimensions Of Fibreglass Braided Hv Cables

Conductor: Stranded Nickel
Insulation: Fiberglass Wrapping
Jacket: Fiberglass Braid

Size mm2	Conductor Structure	Insulation Thickness (mm)	Jacket Thickness (mm)	Diameter (mm)
0.5	16/0.2	0.4	0.2	2.1±0.1
0.75	24/0.2	0.4	0.2	2.4±0.1
1.0	32/0.2	0.4	0.2	2.5±0.1
1.5	30/0.25	0.45	0.2	2.9±0.1
2.5	49/0.25	0.45	0.2	3.3±0.2
4	56/0.3	0.45	0.2	3.9±0.2
6	84/0.3	0.45	0.2	4.5±0.2

Temperature Range And Bending Radius Of Silicon Cable With Fibreglass Braided

Temperature range	- 60° C ~ + 180° C
Bending Radius	Fixed : 4 x D / Mobile : 7,5 x D.

Types And Specifications Of Multimode Fiber Cables

OM1

Jacket Color – Orange
Data Rate – 1Gb @ 850nm wavelength
Core Sizes – 62.5um
Distance – Up to 300 M

OM2

Jacket Color – Orange
Core Sizes – 50um
Distance – Up to 600 M
Data Rate – 1Gb @ 850nm wavelength

OM3 – Laser-Optimized Multimode

Jacket Color – Aqua
Uses fewer modes of light, enabling increased speeds
Core Size – 50um
Distance – Up to 300 M
Data Rate – 10Gb @ 850nm wavelength
Able to run 40GB or 100GB up to 100 M utilizing an MPO connector

OM4 – Laser Optimized Multimode

Jacket Color – Aqua
Data Rate – 10G @ 850nm wavelength
Distance – Up to 550 M
Able to run 100GB up to 150 M utilizing an MPO connecto
Core Size – 50um

Standard Fibreglass Insulated Cables Wavelengths

Multimode Fiber: 850nm and 1300nm
Single Mode Fiber: 1310nm and 1550nm

Standard Fibreglass Cables Core Sizes

Multimode Fiber Core Size: 50um and 62.5um
Single Mode Fiber Core Size: 8 – 9um

Fibreglass Braided Cables Technical Specifications

Continuous Operating Temperature Range of -94°F / -70°C to 1,202°F / 650°C
Melting Temperature of 2,048°F / 1,120°C
Cuts with scissors without fraying
RoHS Compliant
FMVSS-302 Approved, UL VW-1 Flammability Rating

Applications Of Fiberglass Cables

High-Speed Networks
Data Centers
Financial Centers and Corporate Campuses
Larger Private Networks
Short-haul networks
Local Area Networks
Control Panels
Heaters
Terminals and Lugs
Auto Electric Products
Lighting and Luminaries

Operating Temperatures Of Fiberglass Braided Cables

Minimum Continuous	-94°F/-70°C
Maximum Continuous (MIL-I-23053)	1,202°F/650°C
Melt	2,048°F/1,120°C

Benefits Of Fiberglass Insulated Cables

Very good Thermal Stability
Good Resistance to Moisture & Chemicals
These cables are highly heated and are made to meet your different requirements.
Very good Dielectric Constant
unique combination of electrical, mechanical,thermal and chemical properties

High Temperature Fiberglass Wire Cables Dimensions

Conductor			Insulation			Unit Length
Size	Construction	Diameter	Mica Thickness	Glass Thickness	Diameter	(m)
(AWG)	(No./mm)	(mm)	(mm)	(mm)	(mm)
			≥0.635	0.181		305
24	7/0.20	0.61			≥1.75
22	7/0.25	0.77			≥1.90
20	7/0.31	0.94			≥2.10
18	16/0.254	1.19			≥2.30
16	26/0.254	1.49			≥2.60
14	41/0.254	1.87			≥3.00	200
12	65/0.254	2.36	≥0.762	0.381	≥4.15	100
10	35/0.45	3.06			≥4.85
8	67/0.40	3.75			≥5.55
6	266/0.254	4.75			≥6.55
4	420/0.254	6.02			≥7.80

Tech Spec Of Multi Core Fiberglass Wrapping Cable

Cores	Size AWG	Conductor Structure	Diameter (mm)	Serve Thickness (mm)	Diameter Thickness (mm)	Diameter (mm)	Jacket Thickness (mm)	OD(mm)
2	26	7/0.16	0.48	0.39	1.26	0.2	1.7	0.2	3.8±0.3
3								0.2	4.1±0.3
4								0.2	4.5±0.3
5								0.2	5.0±0.3
2	26	24	7/0.2	0.60	1.38	0.2	1.8	0.2	4.0±0.3
3								0.2	4.3±0.3
4								0.2	4.7±0.3
5								0.2	5.3±0.3
2	22	7/0.254	0.76	0.39	1.54	0.2	1.9	0.2	4.2±0.3
3								0.2	4.5±0.3
4								0.2	5.0±0.3
5								0.2	5.5±0.3
2	20	10/0.254	0.93	0.39	1.71	0.2	2.1	0.2	4.6±0.3
3								0.2	4.9±0.3
4								0.2	5.5±0.3
5								0.2	6.1±0.3
2	18	16/0.254	1.17	0.39	1.95	0.2	2.4	0.2	5.2±0.3
3								0.2	5.6±0.3
4								0.2	6.2±0.3
5								0.2	6.9±0.3
2	16	26/0.254	1.50	0.39	2.28	0.2	2.7	0.2	5.8±0.3
3								0.2	6.2±0.3
4								0.2	6.9±0.3
5								0.2	7.7±0.5
2	41/0.254	41/0.254	1.88	0.52	2.92	0.2	3.3	0.2	7.0±0.5
3								0.2	7.5±0.5
4								0.2	7.5±0.5
5								0.2	9.3±0.5

Sizes Of Fiberglass Cables

Cross Section (mm2)	Approximate Overall Diameter (mm)	Current Rating
Cross Section (mm2)	Approximate Overall Diameter (mm)	Single Phase (Amps)	Three Phase (Amps)
1.5	2.9	17.5	15.5
2.5	3.53	24	21
4	4.4	32	28
6	4.68	41	36
10	5.98	57	50
16	6.95	76	68
25	8.7	101	89
35	10.08	125	110
50	11.8	151	134
70	13.5	192
95	15.7	232	207
120	17.4	296	239
150	19.3	300	262
185	21.5	341	296
240	24.6	400	346
300	27.9	458	394
400	30.8	546	467
500	33.8	626	533
630	37.6	720	611

International standard wire size Chart (IEC 60228)
0.75 mm²	4 mm²	0.5 mm²	1 mm²	2.5 mm²	1.5 mm²
70 mm²	6 mm²	25 mm²	185 mm²	35 mm²	400 mm²
95 mm²	1000 mm²	10 mm²	800 mm²	150 mm²	50 mm²
300 mm²	120 mm²	500 mm²	16 mm²	630 mm²	240 mm²

Many Suppliers, Exporters, Stockholders, Dealers, Importers, Stockists And Distributors Purchase Fiberglass Wire Cable From Bhuwal Insulation And Supply In Their Own Cities And Countries With Higher Margins, So Contact Fiberglass Cable Manufacturers In India Directly And Save Cost
