Feeding, Distribution, Over flow System

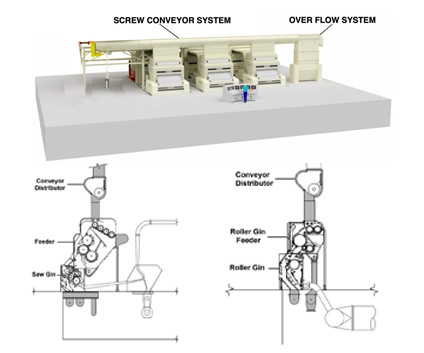

The Conveyor Distributor is a screw-type conveyor, mounted in a specially-designed trough, which receives the seed cotton from the precleaning machinery mounted above it and conveys it, distributing it into hoppers mounted above the extractor feeders. Conveyor Distributors typically feature a 16” diameter screw conveyor, but for ultra-high-capacity gin plants, required a 24” diameter screw option. Any excess seed cotton that carries past the feeder hoppers is collected in an Automatic Overflow Hopper, which feeds it into an air stream that returns the cotton to an Overflow Separator. The Overflow Separator is mounted so as to re-introduce the seed cotton to the Conveyor Distributor, thus completing the live overflow cycle.

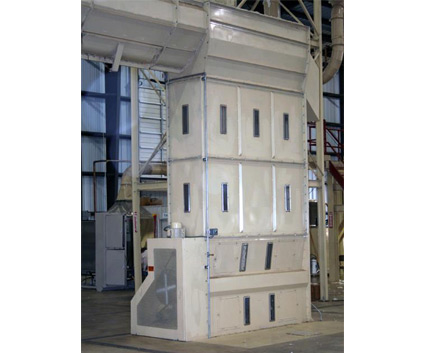

The over flow system Receives and holds excess cotton from conveyor distributor, Eliminates overflow pen, telescope, and operator, Variable-height hopper fits almost any existing conveyor distributor, Receives signal from gin stand to activate feed rollers automatically, When hopper is full, contact vane cuts off incoming and activates feed rollers to feed gin through overflow separator.

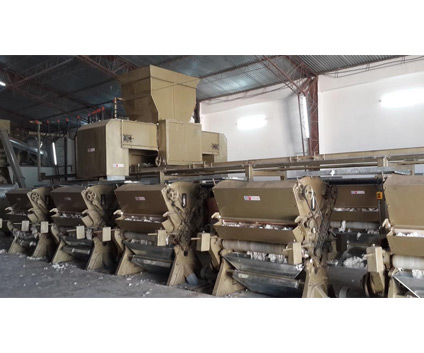

The Trolley Distributor System is a Trolley type, mounted in a specially-designed trough, which receives the seed cotton from the conveyor belt connected with precleaning machinery mounted above it and conveys it, distributing it into directly auto feeder of the Gin stand. Trolley Distributors typically feature a 8 to 12 feet wide, with storage (capacity 300 to 500 kgs. or more depends on storage box size) of seed cotton, seed cotton drop in to gin auto feeder via conveyor belts given bottom of the trolley this conveyor is available both side or single side. Trolley system not required Automatic Overflow Hopper, which feeds it into an air stream that returns the cotton to an Overflow Separator. Major Indian ginning company is used this trolley system to avoid heavy investment & maintenance.
