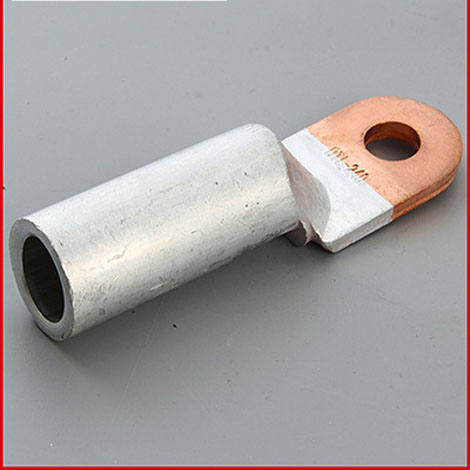

Cu-Al Cable Lugs

1.Application:-Bimetallic lug are mostly useful where an aluminum cable has to be terminated by a copper busbar or copper contact.

2.Technique of production:-friction welding. The transition section between aluminum and copper is produced by friction welding,bending 1800,no breaking welding.

3.Barrels:-friction welding. The transition section between aluminum and copper is produced by friction welding,bending 1800,no breaking welding.

4.Material:-99.9% purity copper & 99.5% purity aluminum

5.Conductivity:-copper 99.7% IACS
Aluminum 61.2% IACS(1050)

6.Final treatment:-Acid cleaning

7.Size:-16sqmm to 630sqmm,Note: Copper palm for 500sqmm and 630sqmm is square.

Code	Dimension (mm)
		D	d	L	L1	B
DTL-16	8.5	10	6	70	32	16
DTL-25	8.5	12	7	75	34	18
DTL-35	10.5	14	8.5	85	40	20.5
DTL-50	10.5	16	9.5	90	42	23
DTL-70	12.5	18	11.5	102	47	26
DTL-95	12.5	21	13.5	112	50	28
DTL-120	14.5	23	15	120	53	30
DTL-120	14.5	25	16.5	126	55	34
DTL-185	16.5	27	18.5	133	58	37
DTL-240	16.5	30	21	140	60	40
DTL-300	21	34	23	165	65	45
DTL-400	21	38	26	170	70	50
DTL-500	21	42	29	190	75	60
DTL-630	/	54	34	225	80	80
DTL-800	/	60	38	270	90	100
